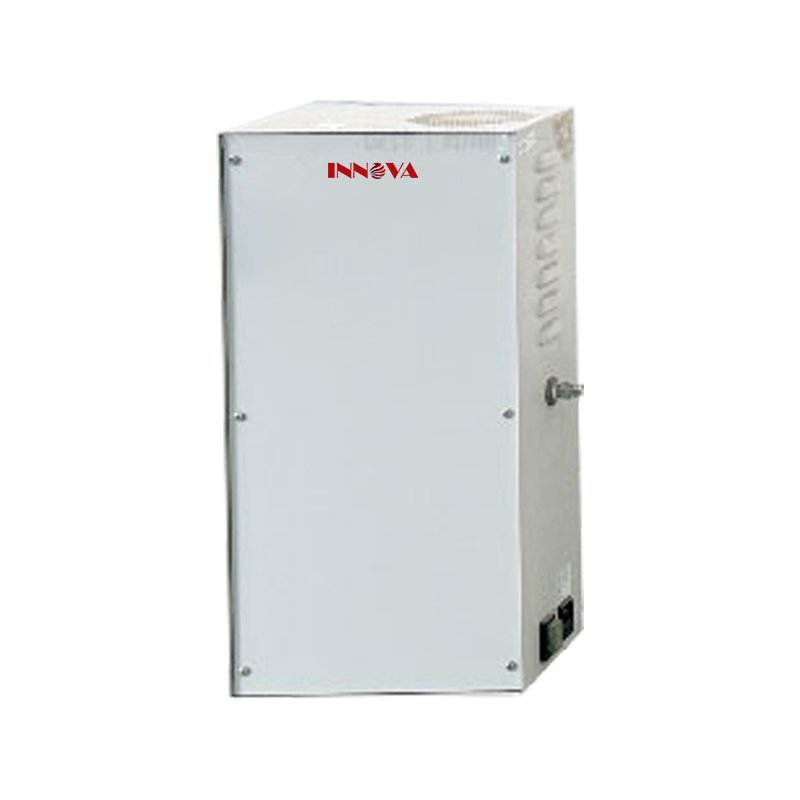

Air generator is a device used to produce, purify, and deliver compressed air. It is commonly used in situations where clean, dry, oil-free air is needed, such as laboratories, medical equipment, and pneumatic tools.
How it works:
1.Suction process: The air generator first draws ambient air through an intake filter to remove dust and impurities.
2.Compression process: The inhaled air is then compressed. This is usually done by a compressor (such as a piston or screw type).
3.Purification process: The compressed air then passes through a series of purification processes, including cooling, water removal, and filtration, to further remove water vapor, oil vapor, and other contaminants.
4.Output: The purified dry and pure air is supplied for use through the output pipeline.
| Output flow | 50-60L/min |
| Output pressure | 0-0.4MPa |
| Pressure stability | <0.2% |
| Working noise | 50~55dB(A) |
| Power supply | 220v±10%, 50-60Hz |
| Operating ambient temperature | 0-40℃ |
| Ambient humidity | <85% |
